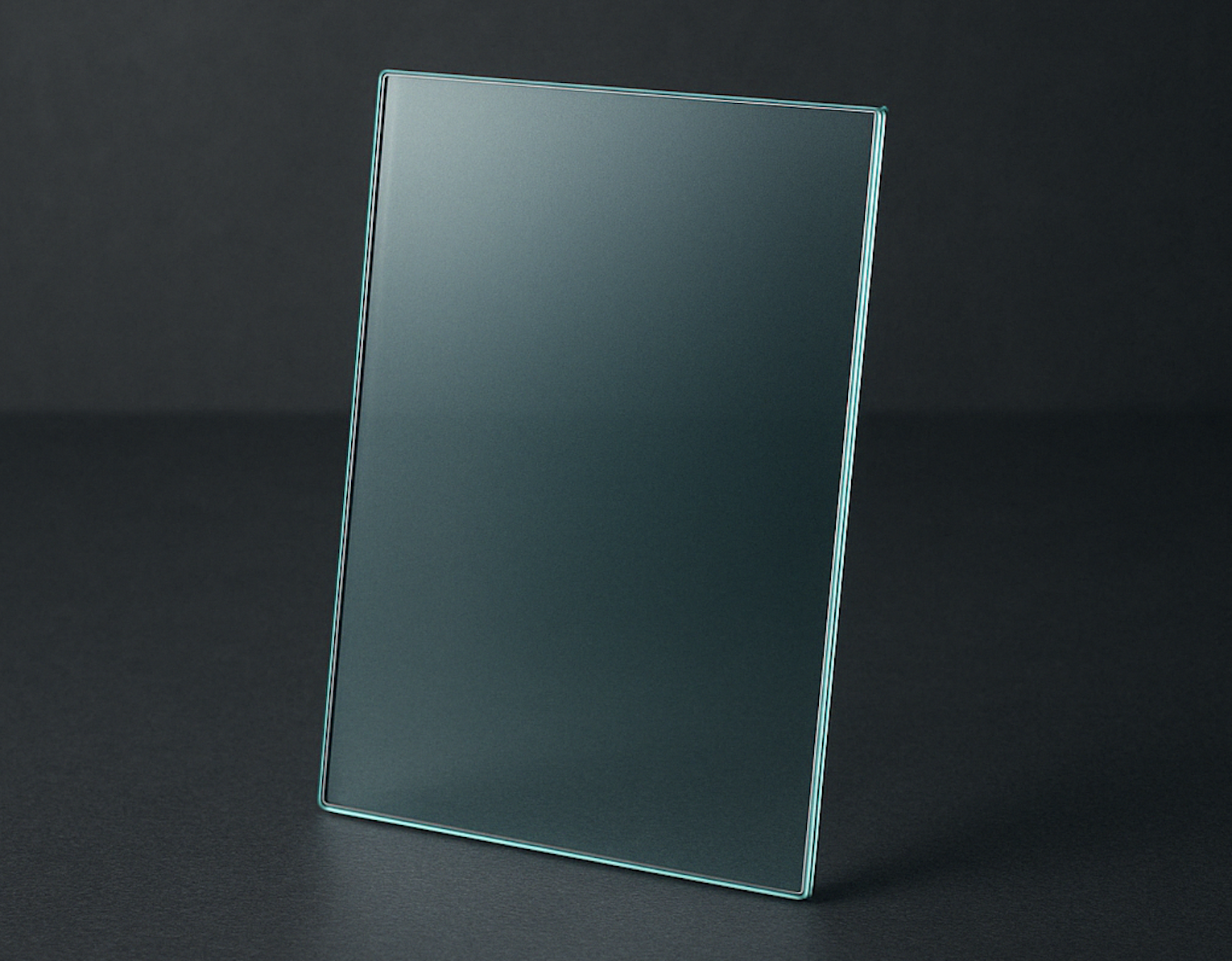

Anti Reflective (AR) Glass Supplier | Low-Glare Glass for Displays & Optics

Anti-reflective (AR) glass offers up to 98% light transmittance and ≤1.5% reflectivity. Perfect for optical windows, displays, and architectural applications.

Product Code: AR79814048

Product Characteristics

  • Very low surface reflections (≤1.5%)
  • High VL transmittance (≥98.0%)
  • No ghost images, phantom light and double laser beams
  • Refractive index matches glass-to-air transition
  • Dielectric multi-layer coating construction
  • Low light absorption
  • High abrasion resistance(≥7H)and coating adhesion

Anti-Reflective (AR) Glass is designed to reduce surface glare and boost optical clarity, helping your products deliver a cleaner, brighter image in any lighting. By minimizing reflections and increasing light transmission, AR glass improves readability and contrast for displays, touch panels, instrument covers, and optical windows—especially in high-ambient or direct sunlight conditions.

For B2B manufacturing, AR coatings can be tailored to your application requirements: single- or double-sided treatment, target reflectance levels, and compatibility with different substrates and thicknesses. The glass integrates smoothly into multi-layer assemblies and can be supplied in custom sizes, edge finishes, and tolerances to fit your production process and product design.

AR glass also supports a more premium user experience and can help reduce customer complaints related to glare and visibility. It’s a strong choice for consumer electronics, automotive and marine displays, industrial HMI panels, and medical devices where clarity and reliability are non-negotiable. Send your specs, and our team will recommend the optimal AR configuration and provide a fast quote.

Applications

visibility

Anti-reflection coating for optical windows and lenses

apartment

Architectural applications

storefront

Retail storefronts

photo_frame

Picture frame

museum

Museum glass displays

sensors

Sensor cover glasses

light_mode

Laser windows

science

Anti-reflection coatings for optical measuring instruments

directions_car

Automotive cockpit glasses

photo_camera

Camera protection windows

camera

AR-coating for single lenses and lens assemblies

Technical Specifications Datasheet

Model Thickness
mm
Transmittance Reflective colour Peak value Surface hardness
H-H-93 0.55/0.7/1.1/
1.3/1.6/1.8/2/
2.2/2.5/3/4/5
≥93.0% Light red 480-520nm ≥7H
H-H-94 0.55/0.7/1.1/
1.3/1.6/1.8/2/
2.2/2.5/3/4/5
≥94.0% Light red-
Purple red
520-550nm ≥7H
H-H-95 0.55/0.7/1.1/
1.3/1.6/1.8/2/
2.2/2.5/3/4/5
≥95.0% Purple red-
Blue purple
540-580nm ≥7H
H-H-97 0.55/0.7/1.1/
1.3/1.6/1.8/2/
2.2/2.5/3/4/5
≥97.0% Blue purple-
Blue
550-600nm ≥7H
AR glass can be made of float glass or extra clear glass according to customer's requirements
Min size: 200mm*200mm    Max size: 800*1300mm

STORAGE AND STABILITY

This product should be stored at Room Temperature and Pressure and its stability are indefinite. It should be placed in a clean environment.

Precautions and Disclaimer:

These products are for R&D and industrial use only, not for drug, household, personal or other uses.
