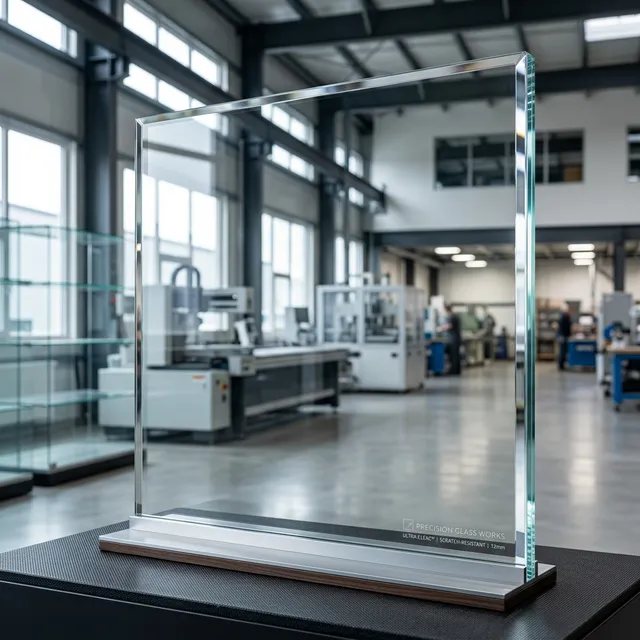

Scratch Resistant Glass Supplier | 9H Hardness Protective Cover Glass (B2B)

Scratch resistant glass with 9H surface hardness, high clarity (≥92% transmittance) and tight thickness tolerance. Ideal for cover lenses, touch panels and protective windows. Custom sizes, OEM/B2B supply—request a quote.

Product Code: SR79814048

Product Characteristics

  • Excellent strength properties and good glass toughness
  • High mechanical property
  • High hardness (9H after tempering.)
  • Lower surface roughness, smoother surface quality
  • Ultra-high transmittance can make color expression more real
  • Good chemical stability

Scratch Resistant Glass from Krasna is engineered for demanding cover-lens and protective applications where everyday abrasion, frequent touch, and cleaning cycles can quickly degrade standard glass. With 9H surface hardness after tempering, high toughness, and a smoother surface finish, it helps your end product stay clear, premium-looking, and reliable throughout its service life.

For industrial manufacturing, this glass is built around process stability and tight tolerances: precise thickness control (±10 μm) supports consistent lamination/assembly, while surface roughness control (Ra ≤120 nm) improves optical bonding and touch performance. With visible-light transmittance ≥92% and improved strength (noted as >6× vs ordinary soda-lime glass), you get durable protection without sacrificing clarity.

It’s a practical choice for electronic cover glass, industrial and vehicle-mounted touch controls, optical components, laboratory glass, and high-strength protective windows—anywhere you need fewer scratches, fewer returns, and a better user experience. Share your target size, thickness, and performance requirements, and our team will recommend the right configuration and provide a fast B2B quote.

Applications

smartphone

Cover glass for electronic products

directions_car

Industrial control and vehicle-mounted touch control equipment

camera

Optical lens and other components

shield

High strength protective glass

science

Laboratory glass

Higher overall strength

fitness_center

Scratch Resistant Glass strength is more than 6 times that of ordinary soda-lime glass

Better surface roughness

gesture

Glass surface roughness can be controlled at Ra≤120nm

Better thickness control

straighten

The thickness can be precisely controlled within the range of±10um.

Optical performance

Refractive index (633nm) 1.5147
Photoelastic coefficient 27.5 nm/cm/MPa
Transmittance visible main band ≥92%

Thermal parameters

Softening point 853℃
Annealing point 611℃
Strain point 558℃

Performance

Young's modulus 74GPa
Density 2.47g/cm³
Shear modulus 29GPa
Poisson's ratio 0.217
Vickers hardness (200g force) Before strengthening   605kgf/mm²
After strengthening    685kgf/mm²
Coefficient of thermal expansion (20-300℃) 95×10⁻⁷/℃
Surface stress CS >700MPa
Stress layer depth DoI 50um>D>35um

Chemical stability

Reagent Spec. Weight Loss (mg/cm²)
NaOH(mg/cm²) 5%NaOH:95±0.5℃/6h 1.01
HCl(mg/cm²) 5%HCl:95±0.5℃/24h 0.06
NH4F.HF(mg/cm²) 10%NH4F.HF:20±0.5℃ /20min 0.98
HF (mg/cm²) 10%HF:20±0.5℃/20min 6.52
H₂O DIN ISO 719 0

Electrical

Volume resistivity log(Ω·cm) 10.4(50MHZ)
Dielectric constant F/m 7.96(50MHZ)

STORAGE AND STABILITY

This product should be stored at Room Temperature and Pressure and its stability are indefinite. It should be placed in a clean environment.

Precautions and Disclaimer:

These products are for R&D and industrial use only, not for drug, household, personal or other uses.
